M908 MONITOR CONTROLLER
m908
stereo / surround / immersive reference monitor controller
Special Order
Expected availability: 4-6 weeks
stereo to immersive
The m908 Monitor Controller is designed for speaker systems up to 24 channels, from stereo to SONY 360RA™, Dolby Atmos™ 22.2 and any format in between. Built on our legacy of reference audio design, the m908’s audio performance delivers impeccable clarity and detail. Our latest generation AD / DA converters provide incredible dynamic range and resolution, while all new analog circuitry is designed to be effortlessly transparent and musical.
the all in one

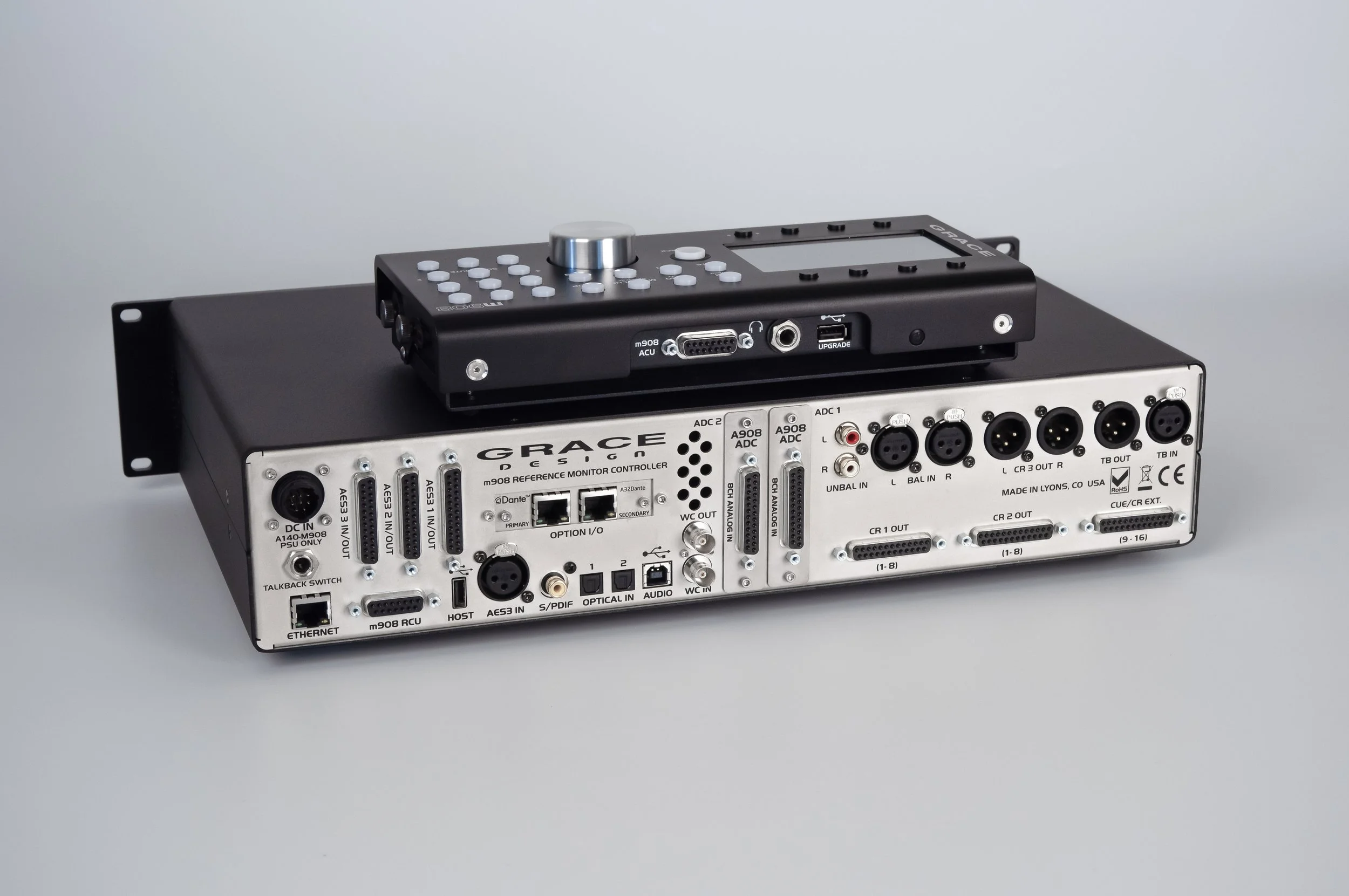

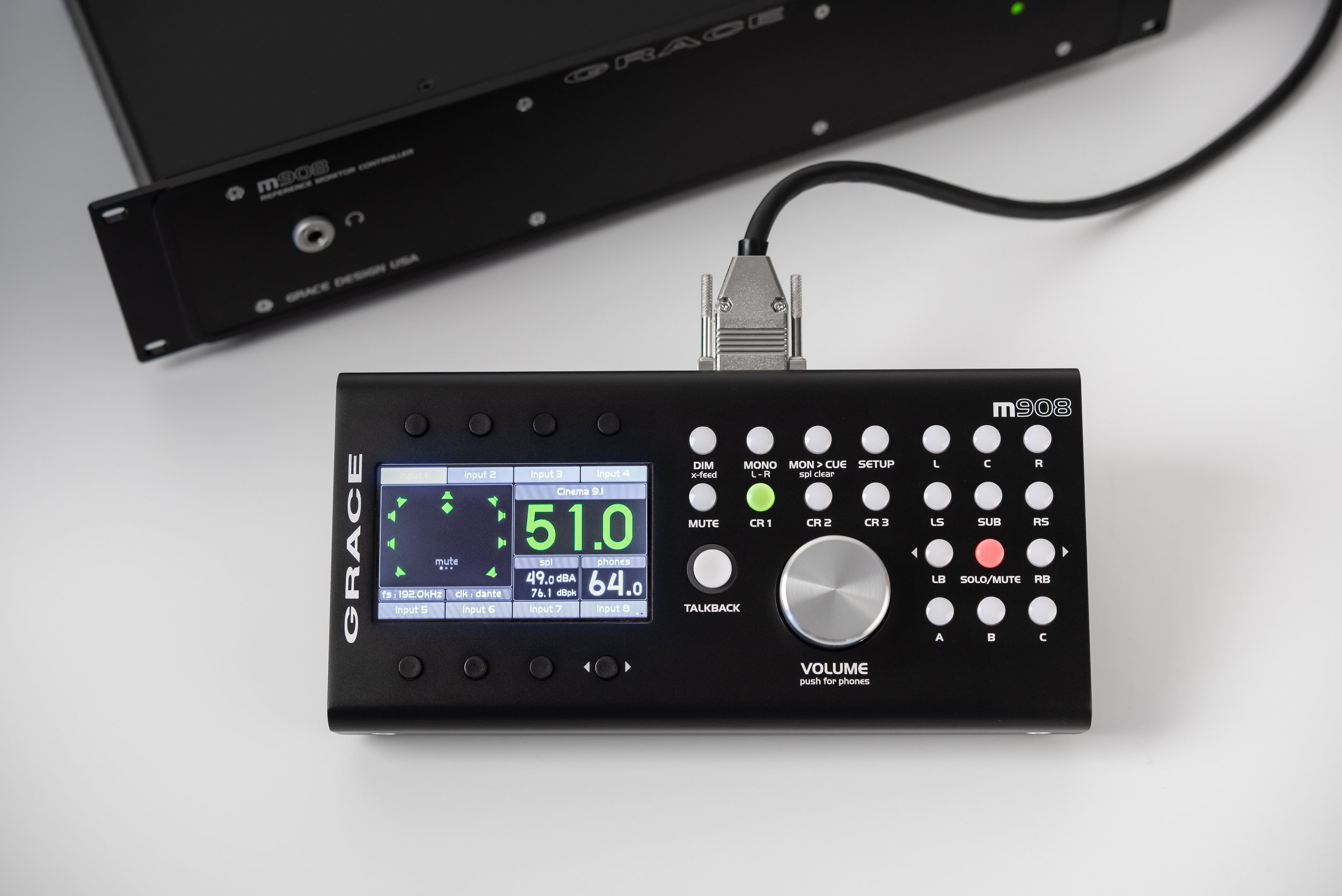

The m908 system consists of a mainframe audio control unit, remote control unit, and a power supply with dual-redundant universal input power modules. The remote control is based on our m905 stereo monitor controller, but scaled up to accommodate added features and playback channel count.
full featured
Standard features include a total of 68 digital input channels via AES3, TOSLINK, S/PDIF, ADAT Lightpipe, and USB2. Outputs include 16 balanced analog output channels and 24 digital output channels. Up to 16 channels of analog inputs are available with the addition of the optional 8 channel ADC modules, and an additional option module slot provides up to 32 additional digital I/O channels via Dante™ or DigiLink™.
powerful dsp
Up to 24 input channels can be received simultaneously and routed to the 24 channel processor, and sample rates of up to 192kHz / 24bit are supported. A powerful DSP section allows for 12 bands of parametric room correction EQ on every channel (or variable numbers of bands per channel totaling up to 85), comprehensive bass management features, and individual channel delay.
plug and play
The m908 is a fully self contained plug and play monitor controller, with a full complement of monitoring features including cue channels, built in talkback mic, mono, mute and dim controls, and an exhaustive list of functions relating to surround and immersive playback systems. It is designed to enable professionals and facilities to update their workflows for immersive audio playback with a minimum of effort and cost.
features
Standard digital inputs include: 24 channel AES3 digital, 16 channel ADAT Lightpipe,
USB 24 channel inputs, AES3, S/PDIF, and TOSLINK stereo inputsAnalog inputs are optional: 8 channel ADC module for 8 or 16 channel analog inputs – these modules are sold separately
Standard outputs include: 24 channel AES3 digital out, 16 channel analog balanced out, 24 channels USB2 out
Optional Dante™ or DigiLink™ module for an additional 32 channels of I/O
4th generation s-Lock pll clocking system for vanishingly low jitter
High resolution volume control
Complete bass management capability
12 bands of parametric room correction EQ on every channel / variable numbers of bands per channel totaling up to 85
64-bit fixed-point filters for room correction and bass management
Channel level and delay calibration
Comprehensive downmix control
Built in real time SPL meter
Powerful and intuitive remote control unit for access to all system controls and calibration
Dual redundant external power supply
Reference quality headphone amplifier with cross-feed
Flexible talkback system with built-in mic on remote control and mic input for external talkback mics
Up to 8 stereo CUE paths
4 General Purpose Input and Output pins for interfacing to external systems
