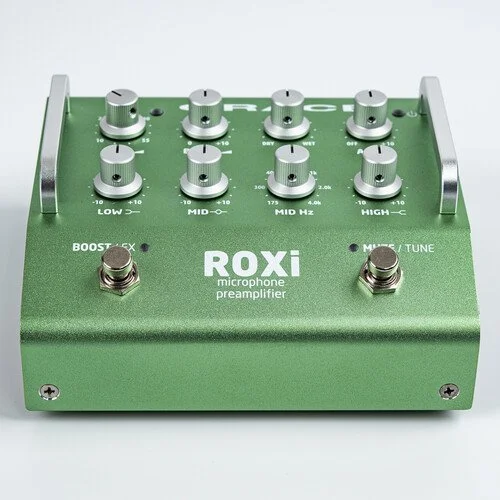

Grace Design ROXi Microphone and Instrument Preamplifier Pedal
ROXi
This one is bigger and more kitchen sink-y. This starts with a precision rotary switch gain control, which levels up the audio performance, especially in higher gain ranges (ribbon mics welcome). A 2 position high pass filter gives excellent control of problem bass / rumble areas at 75Hz or 150Hz. A 3-band EQ with sweepable mids rounds out the tone shaping. The FX loop can be defeated by a footswitch and has an onboard blend control to run your effects at 100% and adjust wet / dry amount on the preamp. The input is a combi XLR / 1/4″ jack, so it can run as an instrument preamp like its buddy ALiX .
We could keep going, but you get the idea: REX and ROXi are wicked mashups of a mic pre, channel strip and stage preamp. Plop one on your your studio desktop and boom, you have a genuine Grace Design recording channel. Tack one to your pedalboard and you have a Swiss Army knife style stompbox with astonishing audio performance and massive flexibility. Do the Swiss actually give those little red knives to their army? Let us know.
ROXi is the big one:
Mic / Instrument input with 48V phantom power
Switchable 75Hz or 150Hz High Pass Filter
3 Band EQ w/ High, Low and sweepable Mid
FX loop with a footswitch for FX mute
FX Mix control
Variable Boost circuit
¼” Amp output w/ independent level control
Mute switch
XLR balanced ISO output
Universal 100-240 VAC power supply
